HEID SDSM-NCC CNC Lathe

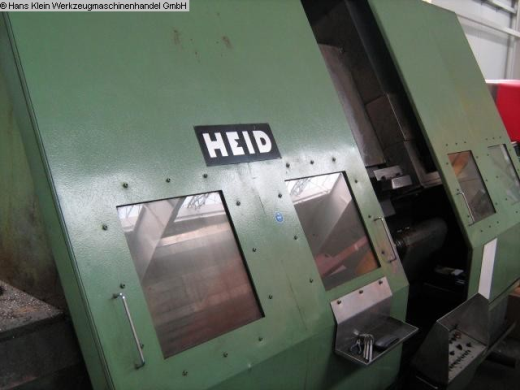

Photo 1

Photo 2

Photo 3

Photo 4

New in 1980

Technical details
greates pass round over bed 750mm
swing diameter over bed slide 520mm
turning length 2,660mm
movement of facing slide 460mm
spindle head DIN 55022 Gr. 11
spindle bore 105mm
max. torque on the spindle max. 5,000 Nm
max. workpiece weight between centres 1,200kg
turning speed range - stepless 11.2-1,800 U/min
spindle motor 52kW
tailstock quill diameter 125mm
tailstock quill stroke 150mm
BOSCH CNC System 5 control
Tailstock taper MT 6
Floor space required (w/o switchgear cabinet) 7,90 x 2,10 x3,00 m
weight of the machine ca. 14 t
- with 15 pos. tool changer (chain magazine)

Accessories:
Hyd. 3-jaw chuck, hydr. steady, around 30 tool holders for chain magazin, chip conveyor, coolant

Category: Lathes - CNC

Seller's location: Germany
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 31 Dec 2021
