Heavy Duty Radial Drilling Machine CARLTON CINCINNATI 7

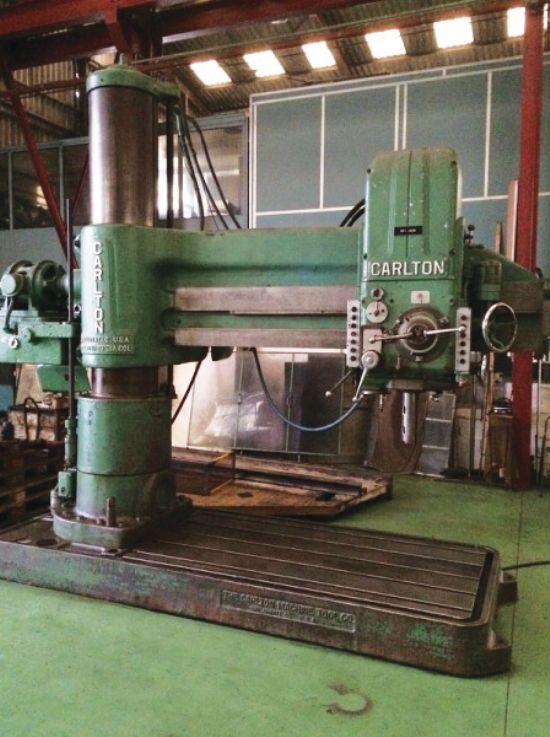

Photo 1

Photo 2

Photo 3

Photo 4

Spindle stroke 450mm,
table size 2,200 x 1,300mm,
distance between table-tool 1,900mm,
spindle dia 100mm,
spindle attachment MT7,
max radius 2,700mm,
arm length 2,300mm,
spindle speeds 34-1,200rpm,
main motor 12hp.
Machine equipped with hydraulic clamping.
Dimensions LxWxH 3,800 x 1,400 x 3,800mm.
Weight of the machine 15T

Category: Drilling

Seller's location: France
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 9 Apr 2024
