Zayer KPCU 4000-AR Bridge Type Milling Machine

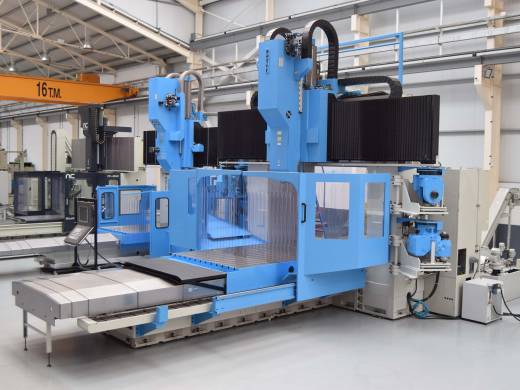

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Table Surface 4.000 X 2.000 mm
Longitudinal Traverse (X Axis) 4.000 mm
Transversal Traverse (Y Axis) 3.550 mm
Vertical Traverse (Z Axis) 1.100 mm
Distance Between Columns 2.800 mm
Rapid Traverse Axes (X ,Y ,Z) 25.000 mm/min
Maximum Working Feed 15.000 mm/min
Spherical Head Taper ISO-50
Twist Head Taper ISO-40
Speed Spherical Head 6.000 r.p.m.
Speed Twist Head 24.000 r.p.m.
Main Motor Power 37 Kw.
Speed Ranges 2 Ranges
Spherical Auto Indexing Head
Rotation A Axes ( Continuous) 360.000 pos
Rotation B Axes (Continuous) 360.000 pos
Twist Auto Indexing Head
Rotation A Axes ( Continuous)360.000 pos
Rotation B Axes (Continuous) 360.000 pos
Heads Manual Taken/Pick up INCLUDED
Head Coolant and Gearbox INCLUDED
ATC 80 tools INCLUDED
Soluble Oil Lubricant Tank With Filter Paper + Magnetic Separator INCLUDED
External Soluble Oil Lubricant 5 Bar Pressure INCLUDED
Retractable Manual Support in the Right Side for Twist Head INCLUDED
Retractable Manual Support in the Internal Right Side for Spherical Head INCLUDED
Double chip conveyor at both sides of the table INCLUDED
Guarding Doors + handrail INCLUDED
Positioning Accuracy 0.010 mm.
Repetitive Accuracy 0.005 mm.
Machine Colour RAL 7038 / RAL 5012
Portable Handwheel HEIDENHAIN HR-410
Ethernet Connection INCLUDED
Carrying Load Table 15.000 Kg.
Machine Weight 41.000 Kg.
Machine Condition EXCELLENT

Category: Milling - NC/CNC

Location: Spain
