ZAYER KF 5000 - 40142 CNC Milling machine - Bed type

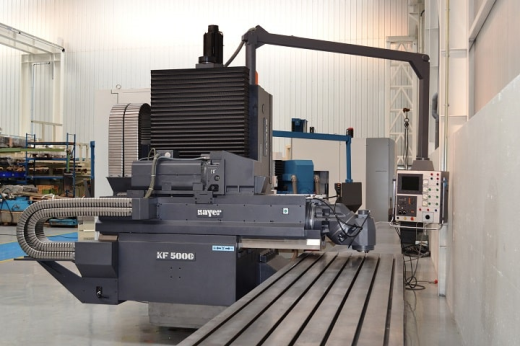

Photo 1

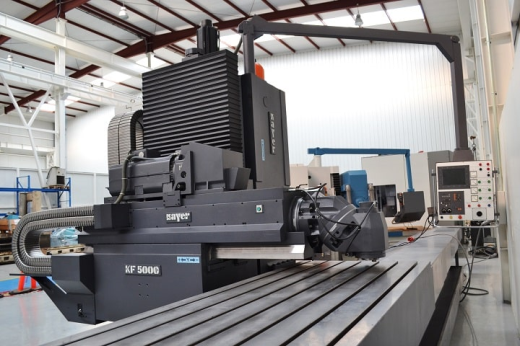

Photo 2

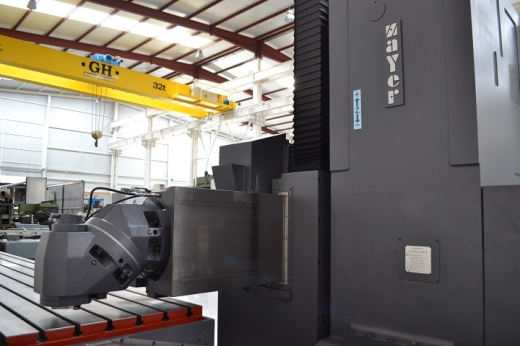

Photo 3

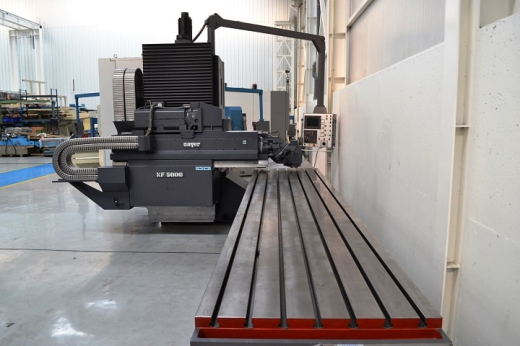

Photo 4

Control: HEIDENHAIN TNC-355
Year: 1990

• Table dimensions: 5000 x 1000 mm
• Number of slots: 7
• T slots dimensions: 22 mm

• X axis traverse: 4700 mm

• Y axis traverse: 1000 mm
• Z axis traverse: 1000 mm

• Head type: Universal manual

• Tool clamping system: Hydraulic
• Tool nose: ISO 50 / DIN 2080
• Speed range: 35 - 1800 rpm
• Spindle power: 34 kW

• Feedrate: 6 - 3370 mm/min
• X/Y/Z Rapid feedrate: 15000

• Maximum weight on table: 10000 kg
• Machine weight approx.: 30000 kg
• Machine dimensions approx.: 12100 x 5490 x 3560 mm

• New guarding
