REISHAUER RZ 400 CNC Gear Grinding Machine

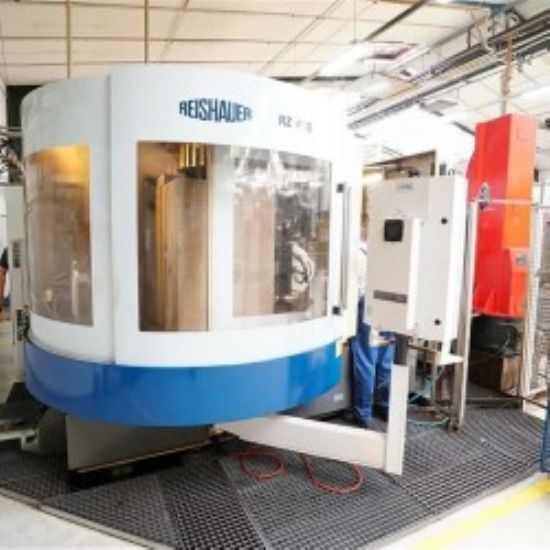

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Type of machine Gear Grinding Machine
Year of manufacture 2005
Control Sinumerik 840D CNC
Country of origin Switzerland
Freight basis ex warehouse
Max. wheel diameter 400 mm
Gear width 300 mm
max. module 8
min. module 0,5
min. wheel diameter 10mm
min. number of teeth 5
max. number of teeth 1000
total power requirement 205 A
Workpiece loading system with programmable sizing joint arm robot
Sensor indexing mechanism
Reishauer dressing device with OD dresser
tailstock

The REISHAUER RZ 400 is in top condition, DIN 5 accuracy. The machine is in state-of-the-art, offering the from REISHAUER invented continuous generating gear grinding. It is free of any defects and is equipped with Sinumerik 840 D control. The machine is complete in all parts, but without filtering and cooling equipment, for it was connected with a "general system" for several other machines. However, we can solve that at a reasonable price, either with a like new Hoffmann or a second hand Turbo Separator equipment.


The new continuous-generating-gear-grinding system is characterized by:
- high flexibility in generating different gear tooth geometry and gear tooth modifications
- very short idle times at short grinding times
- easy changeover , quick setup times, low tooling costs, ease of maintenance

The CNC control combines high user friendliness for nearly any conceivable geometry as well as grinding and dressing technology in order to improve quality and profitability. Part of this is an on-screen diagnostic system and a REISHAUER hard- and software for the electronic gear box with extremely good suppression of disturbances and rigidity of the servo drives for all simultaneous operating axes.

Attachments:
- Measuring system: metric and inch, Languages: German and English
- Automatic dressing compensation of the grinding worm, shift and tooth modification are CNC controlled, e.g. taper, crown,
- Latest CNC control: Siemens 840 D



Category: Grinding - NC/CNC

Location: Germany
