TITAN SC 27 Vertical Turret Lathe - Double Column

Photo of machine

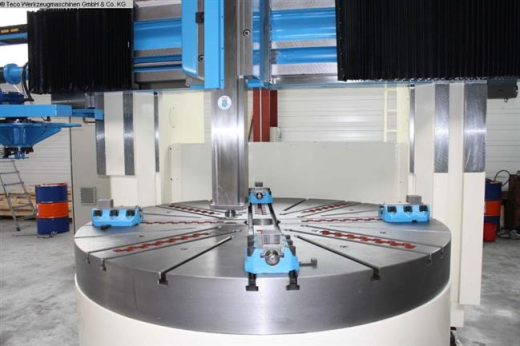

Photo 1

Photo of machine

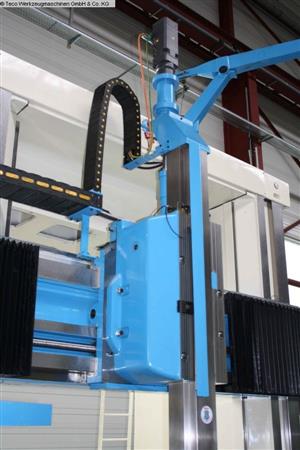

Photo 2

Photo of machine

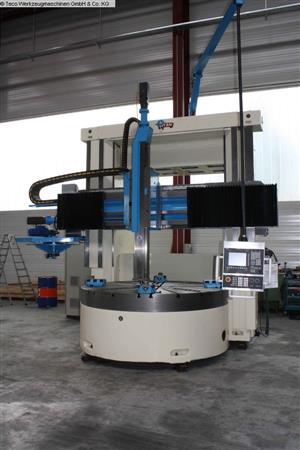

Photo 3

Photo of machine

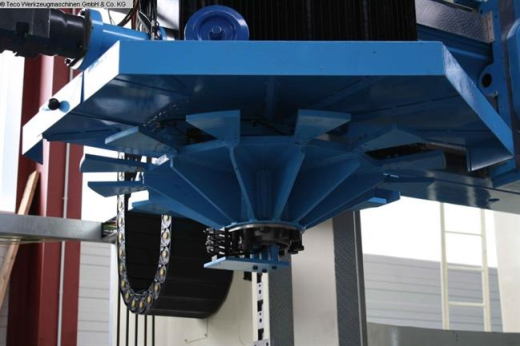

Photo 4

Photo of machine

Video


Year of manufacture 2009
Type of control CNC
Storage location D-40721 Hilden NRW
Country of origin Romania
Delivery time immediately
Freight basis ex-warehouse

Details:
faceplate diameter 2,500mm
swing diameter 2,650mm
turning height 1,900mm
workpiece weight 15,000kg
vertical adjustment of the crossrail 1,500mm
crossrail -rapid travel 400mm/min
turning speed range - faceplate 1.24-112 U/min
Main drive motor 55kW
Ram head swiveling +/- 35 ┬░
Ram head - cross travel 1,450mm
Ram head - vertical travel 1,200mm
feed range 1-4,000mm/min
space required 5,700 x 4,900 x 6,500mm
total power requirement 75kW
weight of the machine ca. 38,000 kg

Equipment:
12-fold tool changer with automatically tool clamping
clamping jaws 4
tool holder 2
Levelling shoes
Description


The machine was geometrically retrofitted in 2009, equipped with latest CNC control Siemens Sinumerik 840D and was not used since.


The TITAN SC 27 is suitable for machining of middle sized cast iron and welded blanks. Turning, inner and outer threading and grooving are the main operations. Both columns of the Titan SC 27 generate together with the upper beam a stiffly
frame to ensure a high statical accuracy. The columns are made of cast iron and they are bolted and doweled with the upperbeam. This construction guarantees a high cutting force. The cross-rail is provided with 4 guideways for a high accuracy of
the support travel. Indexing rails are mounted on the columns to fix the cross-rail each 200mm. The swivelling support ishydraulically balanced. The faceplate is supported by two taper roller bearings, which ensures high concentricity of table
(faceplate).
The machine is equipped with a CNC control Siemens SINUMERIK 840 D, Heidenhain measuring systems,
Siemens motors, electrical cabinet by Siemens and a 12-fold tool changer. All guides are retrofitted or changed respectively.

Attachments:

- Heidenhain measuring systems
- 3-stage main gear box
- Slide travel by stepless ZF-reduction gear and pre-tensed ball screw
- Ram travel by stepless ZF-reduction gear and ball screw
- Slide and ram bearing through TURCITE®-B plates

Category: Lathes - CNC Vertical

Location: Germany
